Customizable Waterproof Industrial Touchpad With 2 Raised Sealed Mouse Buttons

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-B83TP-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Front Plate : Quality brushed stainless steel

Touchpad thickness : 1.3 mm PCB thickness inclusive of mylar layer

Validated touch width : 46.50mm (max)

Validated touch length : 62.50mm (max)

Touchpad lifespan : > 10 Mio times

Interface : PS2 and USB available

Contact Now



Customizable Waterproof Industrial Touchpad With 2 Raised Sealed Mouse Buttons



Description: IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, with mounting holes along the rear panel mounting aluminium plate for rear panel mounting.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.





TECHNICAL SPECIFICATION:



ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.3 mm PCB thickness inclusive of mylar layer
Validated touch width 46.50mm (max)
Validated touch length 62.50mm (max)
Mounting Rack Aluminum alloy
Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 10 Mio times
Dimensions

Touchpad: 65.0mm x 49.0mm;

Front Mounting Panel: 83.0mm x 110.0mm (front panel),

Rear Mounting Panel: 107.0mm x 134.0mm
Interface PS2 and USB both available
Electrical Power supply 5V DC+ 10%,
Work current 4.0 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP67 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN55022(B)
Environmental Operating temperature: -20°C to +60°C
Storage temperature: - 40°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >50000h
MTTR < 30min
Key switch lifespan >10 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

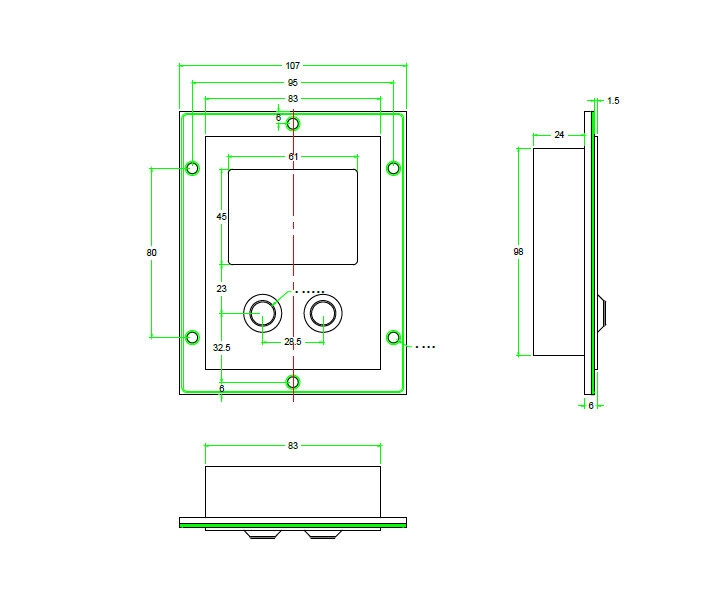

Mechanical Drawing:

Customizable Waterproof Industrial Touchpad With 2 Raised Sealed Mouse Buttons

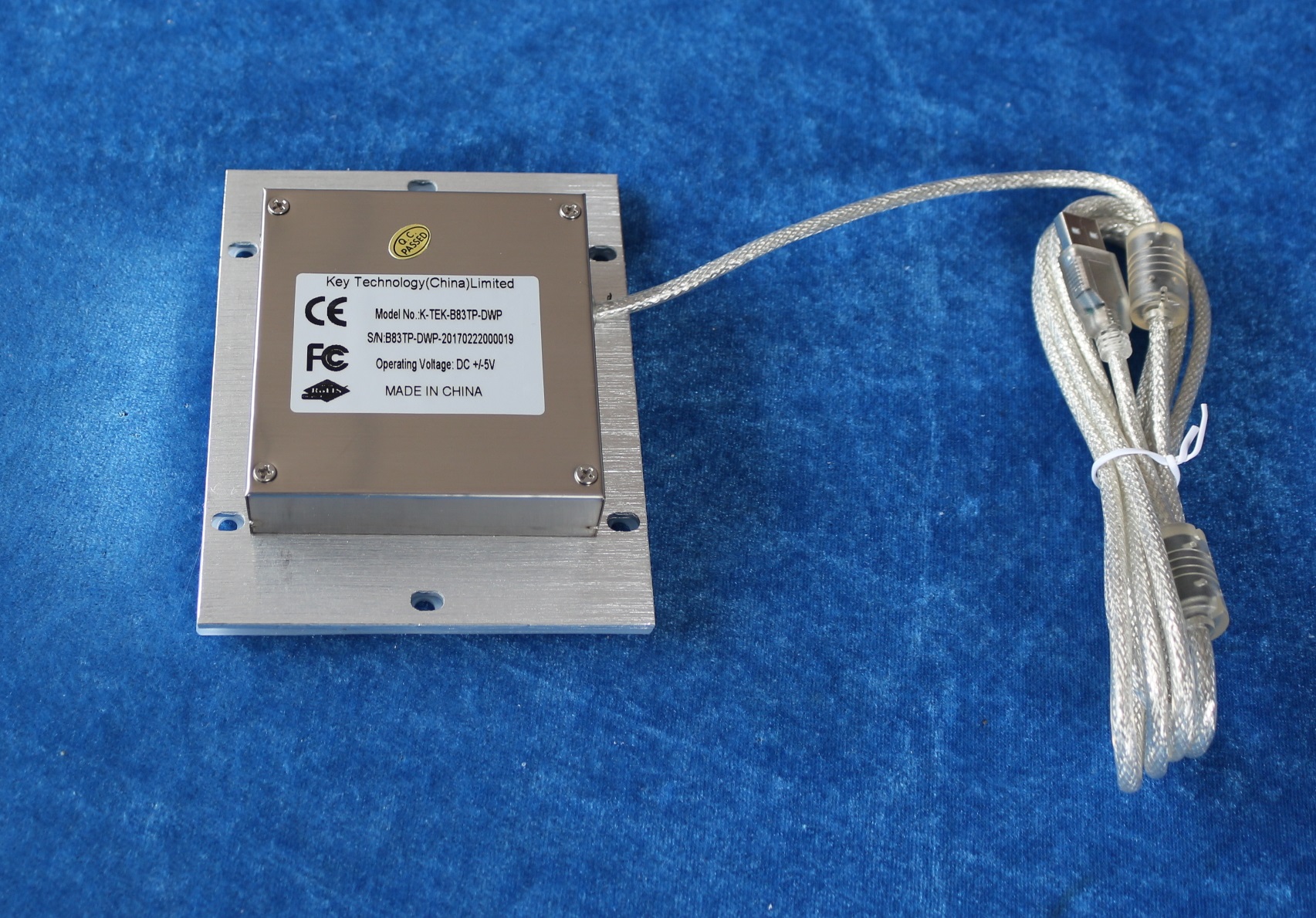

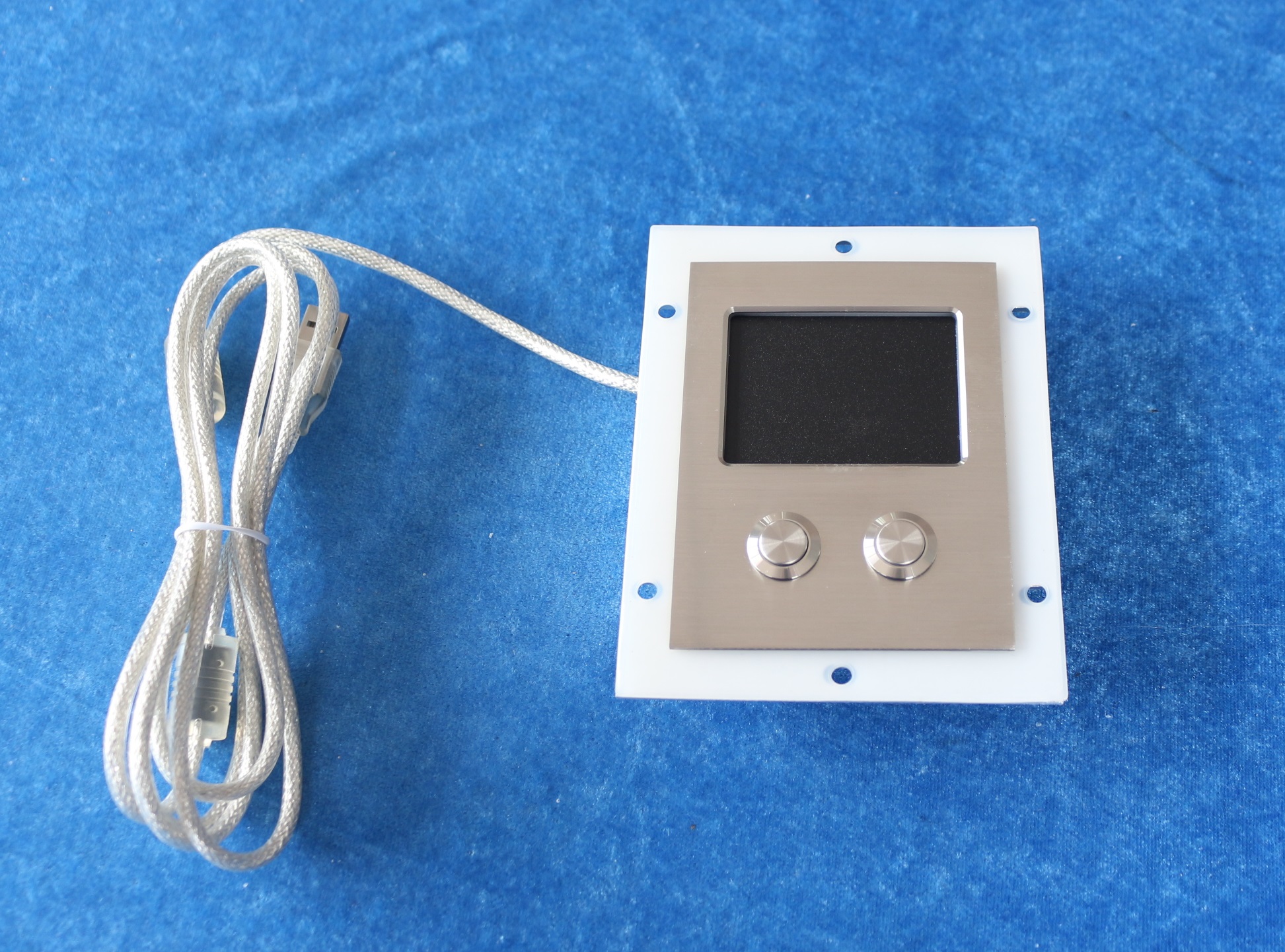

Actual Photos:



Customizable Waterproof Industrial Touchpad With 2 Raised Sealed Mouse Buttons

Customizable Waterproof Industrial Touchpad With 2 Raised Sealed Mouse Buttons
