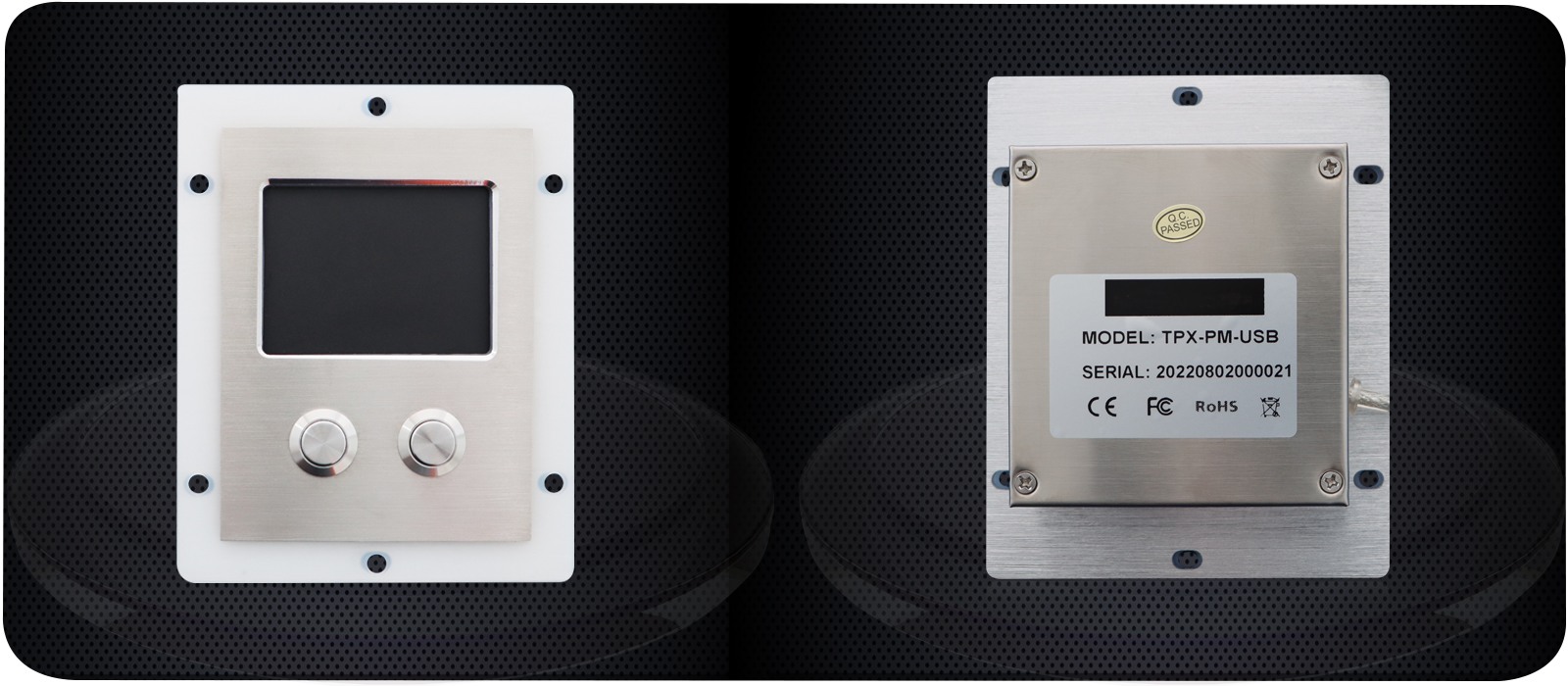

Ruggedized Tough Touchpad Pointing Device Stainless Steel Mouse Buttons

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-B83TP-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : to be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Supply Ability : 3000psc/month

Front Plate : Quality brushed stainless steel

Touchpad thickness : 1.3 mm PCB thickness inclusive of mylar layer

Touchpad lifespan : > 10 Mio times

Interface : PS2 and USB both available

Tracking speed : Maximum 1,016 m/sec

Protection level : IP65

Name : touchpad

Contact Now



Ruggedized Tough Touchpad Pointing Device Stainless Steel Mouse Buttons



Description: IP65 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and protected with stainless steel housing, with mounting holes along the rear panel mounting aluminum plate for rear panel mounting.one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



Dimension: 83.0mm x 110.0mm (front panel)



Ruggedized Tough Touchpad Pointing Device Stainless Steel Mouse Buttons

INDUSTRIAL TOUCHPAD TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.5 mm PCB thickness inclusive of mylar layer
Validated touch width 45.0mm (max)
Validated touch length 61.0mm (max)
Mounting Solution Rear panel mounted with mounting holes
Touchpad lifespan >10 millions clicking
Dimensions

Touchpad: 61.0mm x 45.0mm;

Front Mounting Panel: 83.0mm x 110.0mm (front panel),

Rear Mounting Panel: 107.0mm x 134.0mm

Interface PS2 and USB both available
Electrical Power supply DC +5V±5%
Work current 17 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP65 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN 55032:2015 EN 55035:2017
Environmental Operating temperature: -20°C to +65°C
Storage temperature: - 30°C to + 75°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >20000h
MTTR < 30min
Key switch lifespan >1 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
Application Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.



Mechanical Drawing:

Ruggedized Tough Touchpad Pointing Device Stainless Steel Mouse Buttons
