16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad

Name: 16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad
Brand: IKB-MKB
Price: 1 USD

Buy cheap 16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad product

Brand Name : IKB-MKB

Model Number : K-TEK-A120KP-BL-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : USD

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Keys : 16 keys

Mounting : Top panel mounting

Key stroke : 0.45mm short stroke

Backlit colour : Red or Blue

Dimensions : 120.0mm x 98.0mm (top panel)

G.W : 0.69 KG

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Contact Now

16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad

Specifications:

1.16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric backlit keypad

2. with fully sealed & ruggedized industrial metal dome PCB with industrial electronics controller shielded and protected by stainless steel housing

3. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input

4.stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included

5.IP67 dynamic waterproof keypad which good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

6. Dimension: 120.0mm x 98.0mm (front panel)

MECHANICAL DATA

Front plate:	Super quality SUS304 brushed stainless steel
Back plate:	Super quality SUS304 stainless steel
Actuator/Key:	16 keys, super quality SUS304 brushed stainless steel
Key top style:	protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size:	14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Switching material:	Gold-on-Gold.
Actuation Force:	2.0N+/-0.1N for key 14.0mm x 14.0mm 4.0N+/-0.1N for key 14.0mm x 28.0mm
Key Travel:	0.45mm
Key life:	more than 5 million of operations
G.W.	0.69kg.

RELIABILITY

RoHS Compliant, CE and FCC, ESD
Protection Level: IP65 (front panel)
Vandal resistant IK10
Key Lifespan > 5 million actuations
MTBF >50000H
MTTR <30min

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20^oC to +60^oC
Storage temperature: -30^oC to +70^oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40^oC: 21 days, IEC 60512-6
Dry heat test at + 85^oC: 10 days, IEC 60512-6

More View:

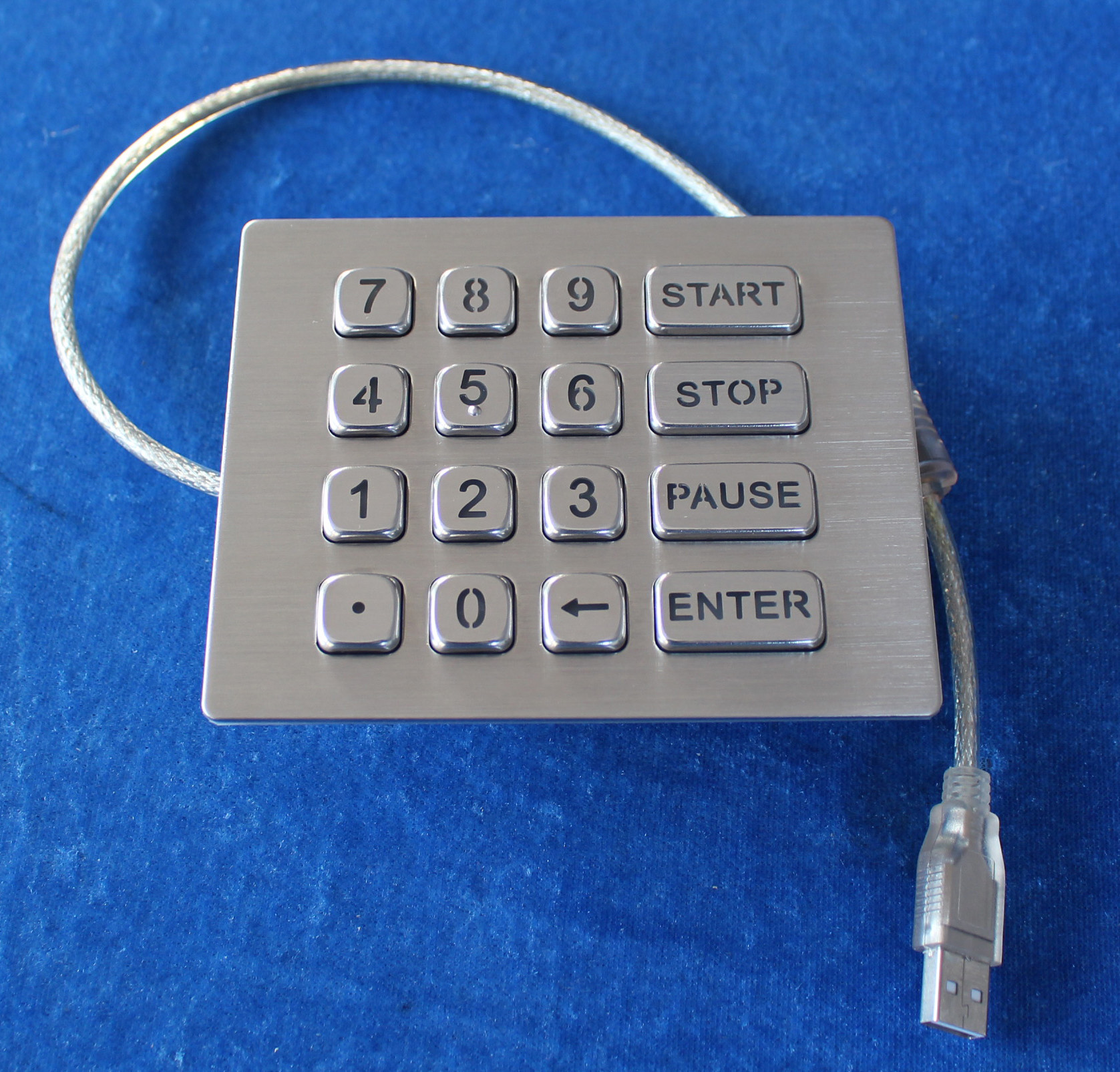

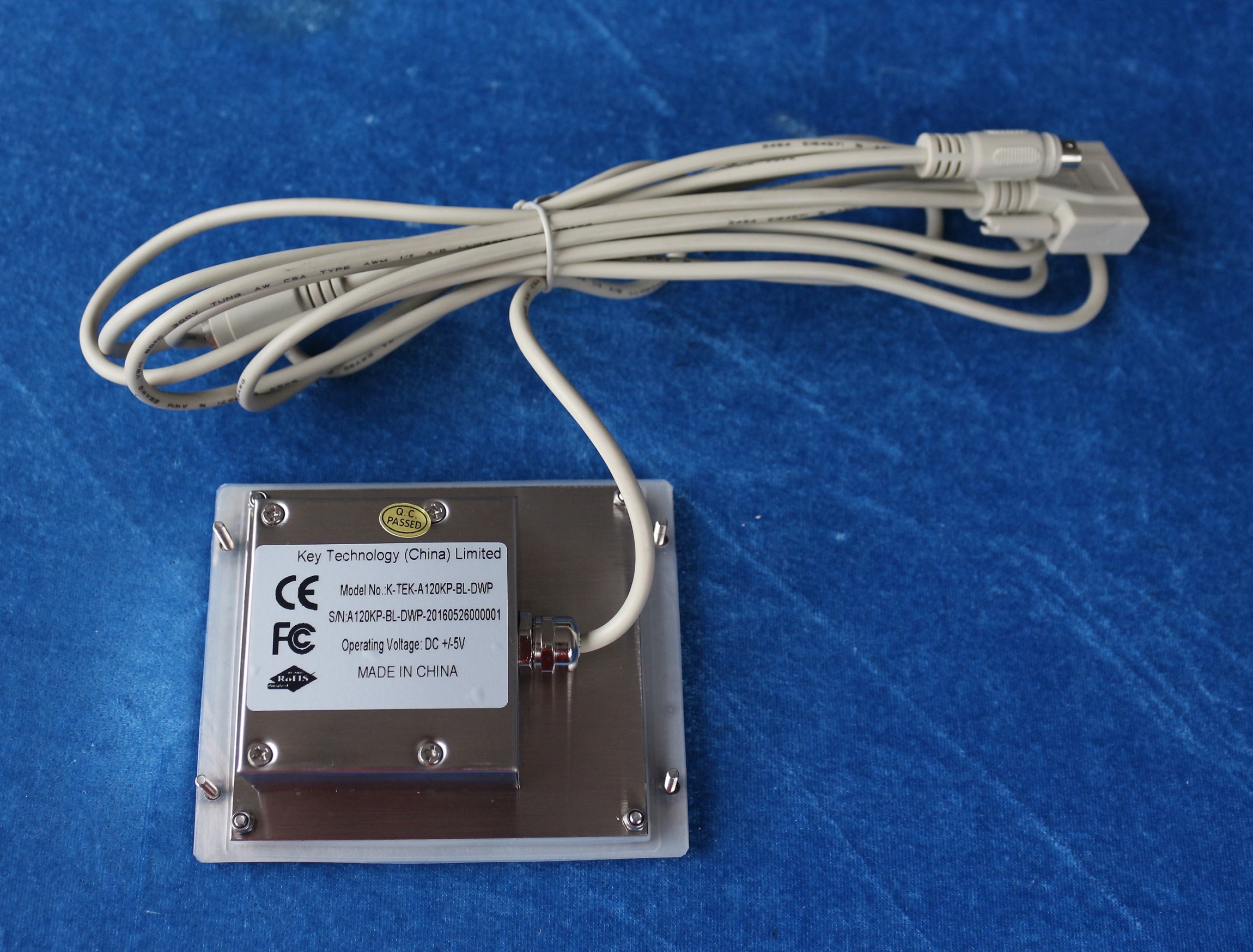

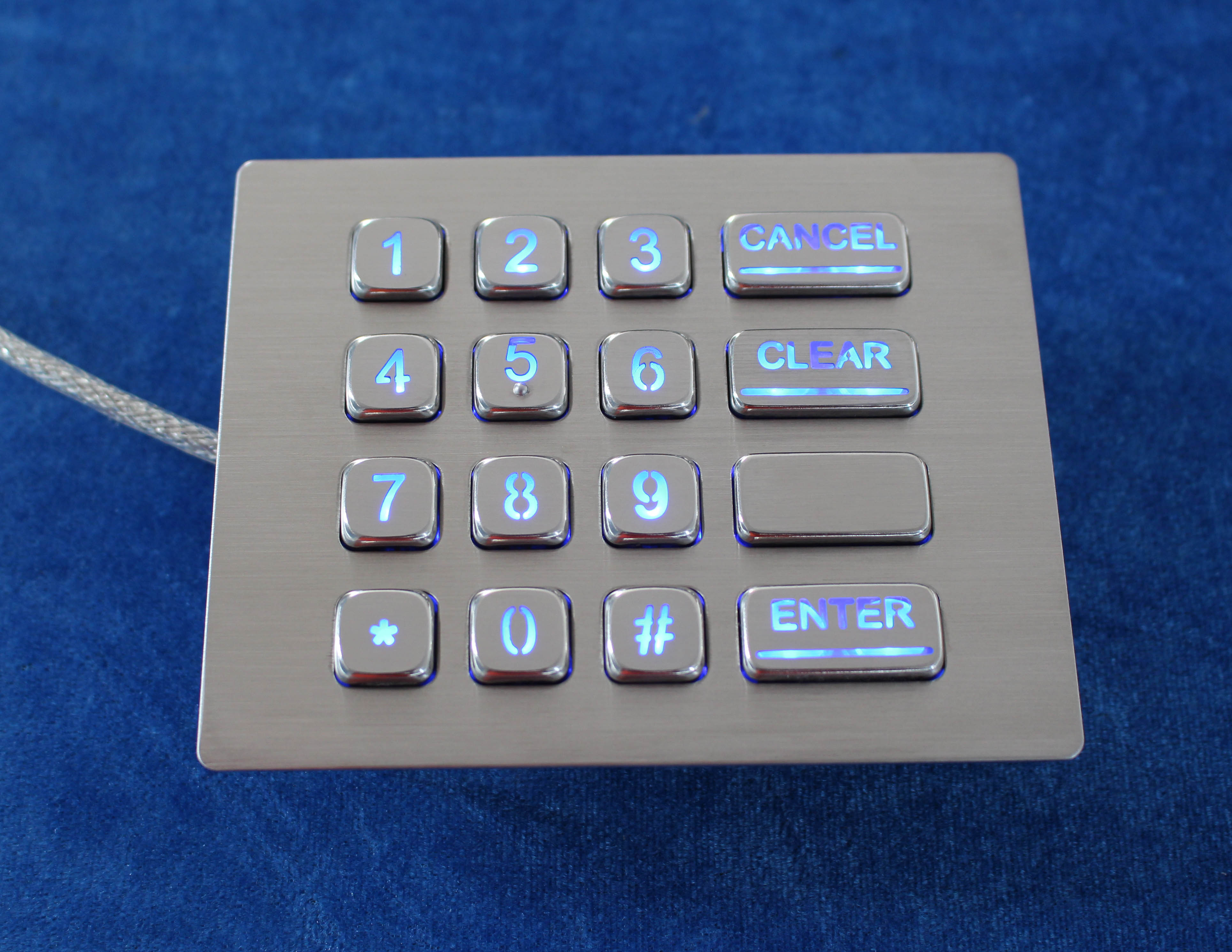

16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad

Our Factory:

16 Keys IP67 Panel Mount Keypad Backlit Customized Stainless Steel Keypad
