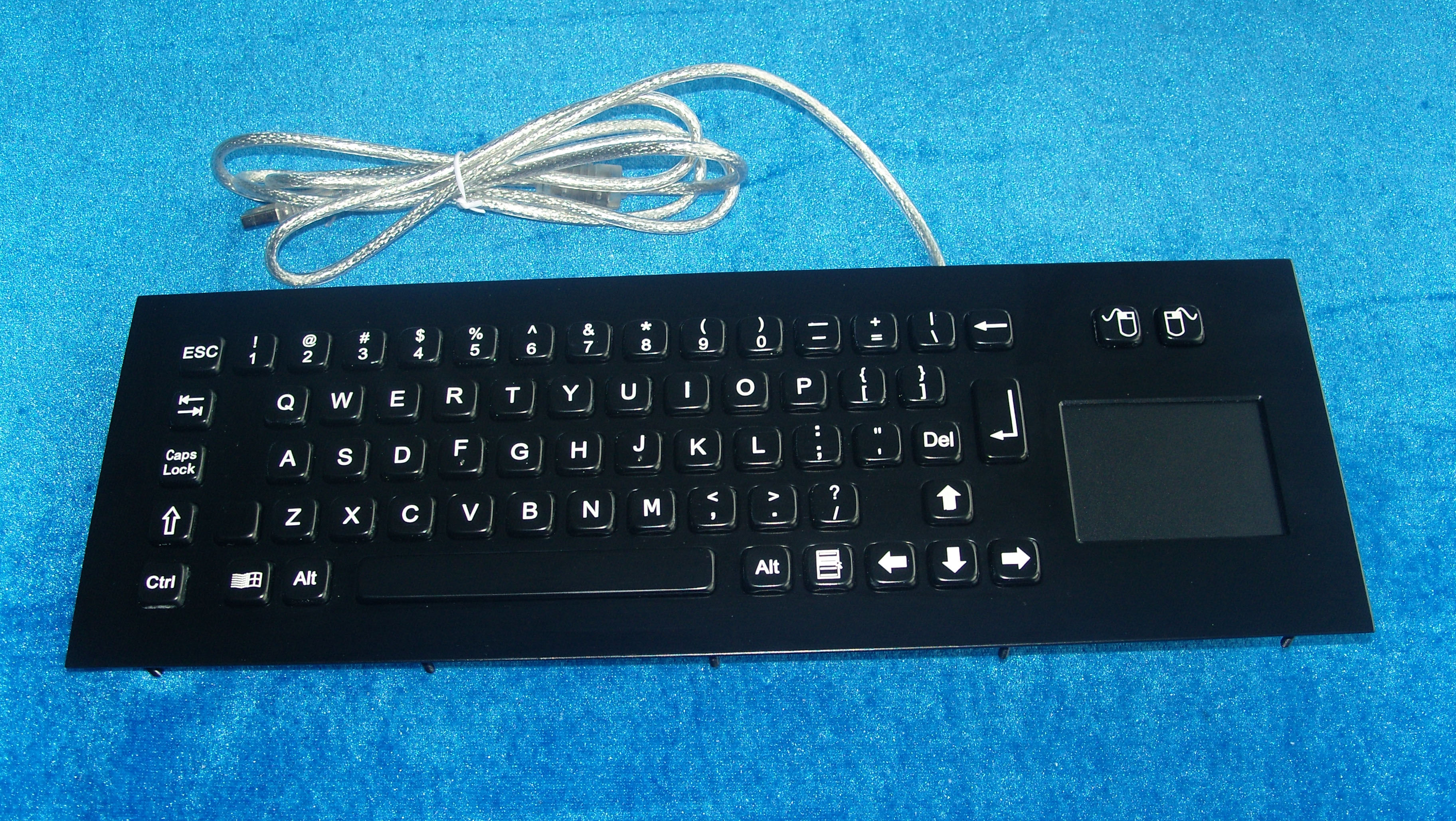

Ultra thin IP65 Dynamic Industrial Black Metal Keyboard Durable Vandal resistant

Name: Ultra thin IP65 Dynamic Industrial Black Metal Keyboard Durable Vandal resistant
Brand: IKB-MKB
Price: 1 USD

Model Number : K-TEK-A361TP-BT

Place of Origin : Shenzhen, China

Packaging Details : Each keyboard to one box, several boxes to one carton.

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Brand Name : IKB-MKB

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

MOQ : 1pc

Price : To be quoted

IP65 dynamic industrial stainless steel keyboard durable black titanium : RoHS Compliant, CE and FCC,IP65,ESD

Protection Level : IP65(front panel)

Vandal resistant : IK09

Key Lifespan : >10 million actuations

MTBF : >50000H

MTTR : <30min

Contact Now

IP65 dynamic industrial stainless steel keyboard durable black titanium

Special Features:

1. vandal proof stainless steel industrial kiosk keyboard with touchpad
2. High quality scratch-proof durable black titanium electroplated
3. CE, FCC, RoHS, IP65, ESD
4. 68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
5. With P65 dynamic sealed & ruggedized tough touchpad with scroll function
6. One complete silicone rubber along mounting aluminum plate
7. High quality scratch-proof durable black titanium electroplated on top stainless steel plate
6. Stainless steel top plate with threaded bolts for top panel mounting solution.
7. Metal keys are protected against twisting and evering which can not be dislodged from front.
8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Specifications:

MECHANICAL DATA
Key	68 keys, super quality brushed stainless steel
Key top style	Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar.
Key travel	2.0mm
Touch pad	Sealed and ruggedized tough touchpad.
Touchpad cover	Composite
X/Y position sensing resolution	40 counts/mm
X/Yposition reporting	Relative
Switch life	more than 10 million of operations
Actuation Force	0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point) 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Tracking speed	Maximum 1,016 m/sec
Output(self-detectable depending on cable)	PS2 or USB
Mounting Rack	Aluminum alloy
Front Plate	Super quality brushed stainless steel
Lettering	Sunk laser legends & characters in high quality ink
Actuator/keys materials	stainless steel
G.W.	1.80KGs
Dimension	361.0mm x 125.0mm (front panel)0K 343.0mm x 105.0mm (back panel)

ELECTRICAL DATA
Supply Voltage	+5V DC +/-5%
Current Rating	appr. 20mA
EMC Standard:	It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010； IEC 61000-4-4:2004
EMI:	EN 55022: 2010
EMS:	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material:	Carbon-on-Gold key switch technology PCB.
Interface:	PS2, USB available.
OS:	All windows, Linux, Unix, Mac OSX

Ultra thin IP65 Dynamic Industrial Black Metal Keyboard Durable Vandal resistant
