Rectangular Keys Silicone Industrial Keyboard Panel Mount With 25mm Optical Trackball

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-M366-OTB-KP-FN-BL-OEM

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2-3 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

FN keys : 12 (F1, F2.. F12)

backlight : Yes (red)

material : silicone rubber

color : black

trackball : Yes (optical trackball)

trackball resolution : 800DPI

Contact Now

DESCRIPTION:
111 keys IP67 dynamic waterproof sealed & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard functionalities, integrated numeric keypad and 12 FN keys (F1, F2...F11, F12), sealed & ruggedized IP68 dynamic25.0mm optical trackball module with 800 DPI resolution for fast and accurate cursor position, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning without disconnecting the keyboard and computer, top panel mounted solution, 4 level adjustable industrial white backlight included to fit for dim or dark environment, industrial level.

MECHANICAL DATA
Key: 111 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 13.0mm x 13.0mm for normal keys, 10.0mm x 12.0mm for top line ESC and FN keys
Switch life: more than 5 million of operations
G.W.: 0.50KGs
Dimensions: 366.0mm x 136.0mm (L x W)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 100mA (non-backlight) , 300mA (with backlight on)
EMC Standard: EN 55032:2015
EN 55035:2017Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

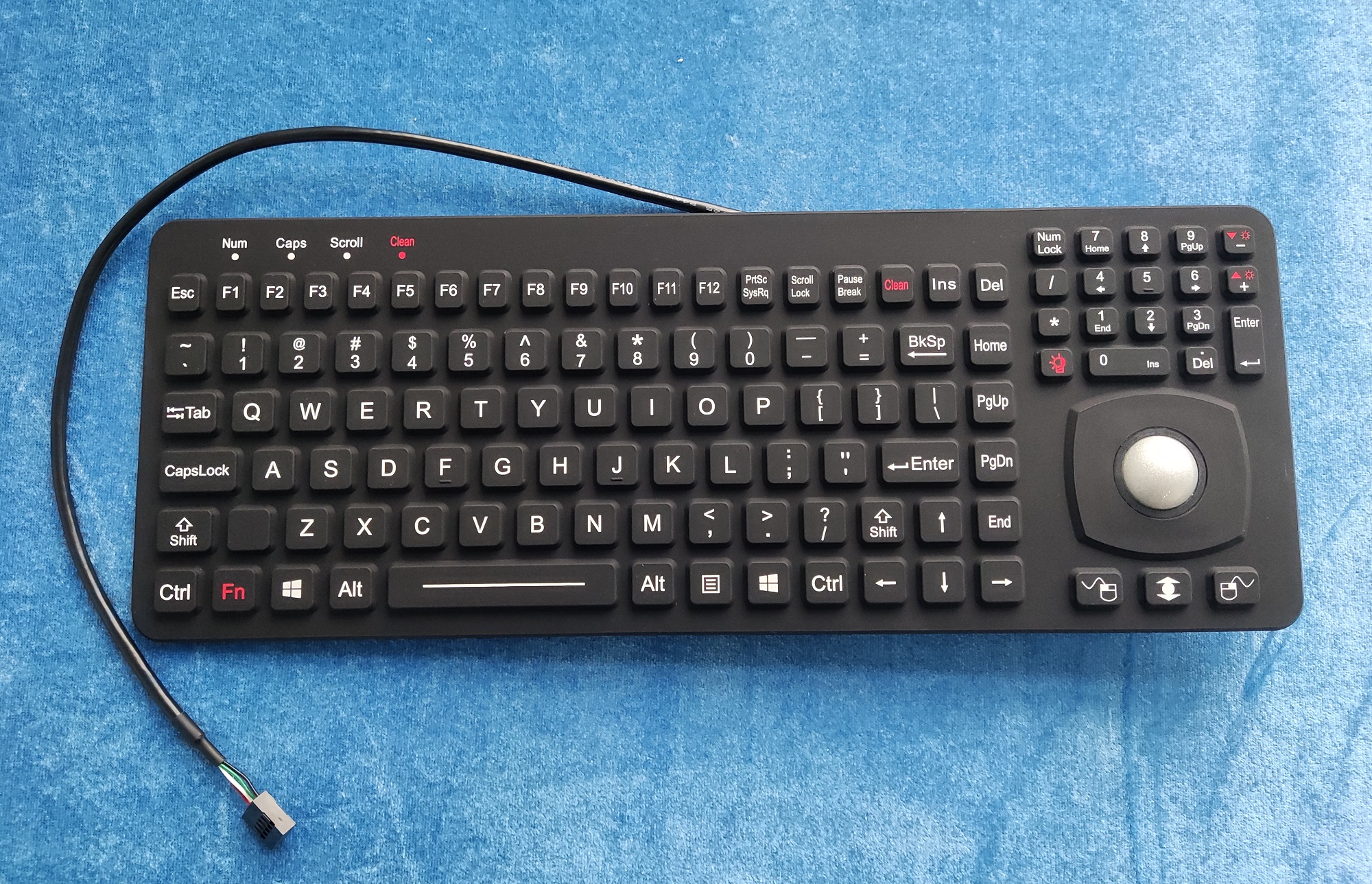

More Back and front View:

Rectangular Keys Silicone Industrial Keyboard Panel Mount With 25mm Optical Trackball

Rectangular Keys Silicone Industrial Keyboard Panel Mount With 25mm Optical Trackball



Our Factory:

Rectangular Keys Silicone Industrial Keyboard Panel Mount With 25mm Optical Trackball
