Industrial Desktop Compact Keyboard With Trackball Metal Vandal Proof
DESCRIPTION:
1: 86 keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard with IP65 static 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise,
2: Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with
carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise,
3: Mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, movable stand alone Desktop version,or mountable desktop with mounting holes on the backside for fixing.
4: Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, without metal parts inside to avoid rust risk and anti-salt spray corrosion.
5: DIMENSIONS: 361.0mm x 145.0mm x 33.5mm (L x W x H)
Application:
-This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
- internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
-Other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
| MECHANICAL DATA: |
| Actuator/keys: | 86 keys, super quality SUS304 brushed stainless steel |
| Key top style: | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size: | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar. |
| Actuation Force: | 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life: | more than 5 million of operations. |
| Tracker ball: | 38.1mm (1.5’) diameter, IP65 static mechanical trackba |
| G.W.: | 3.0KGs |
| Dimensions: | 361.0mm x 145.0mm x 33.5mm (L x W x H) |
| ELECTRICAL DATA : |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 20mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material: | Carbon-on-Gold key switch technology PCB |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RELIABILITY: |
| RoHS Compliant, CE and FCC, ESD |
| Protection Level: | IP67(keyboard) + IP65(trackball) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : |
| Operating Temperature: | -20oC to +60oC |
| Storage Temperature: | -30oC to +70oC |
| Operating RH: | 30-90% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
Actual Photos:
Keyboard without backlight

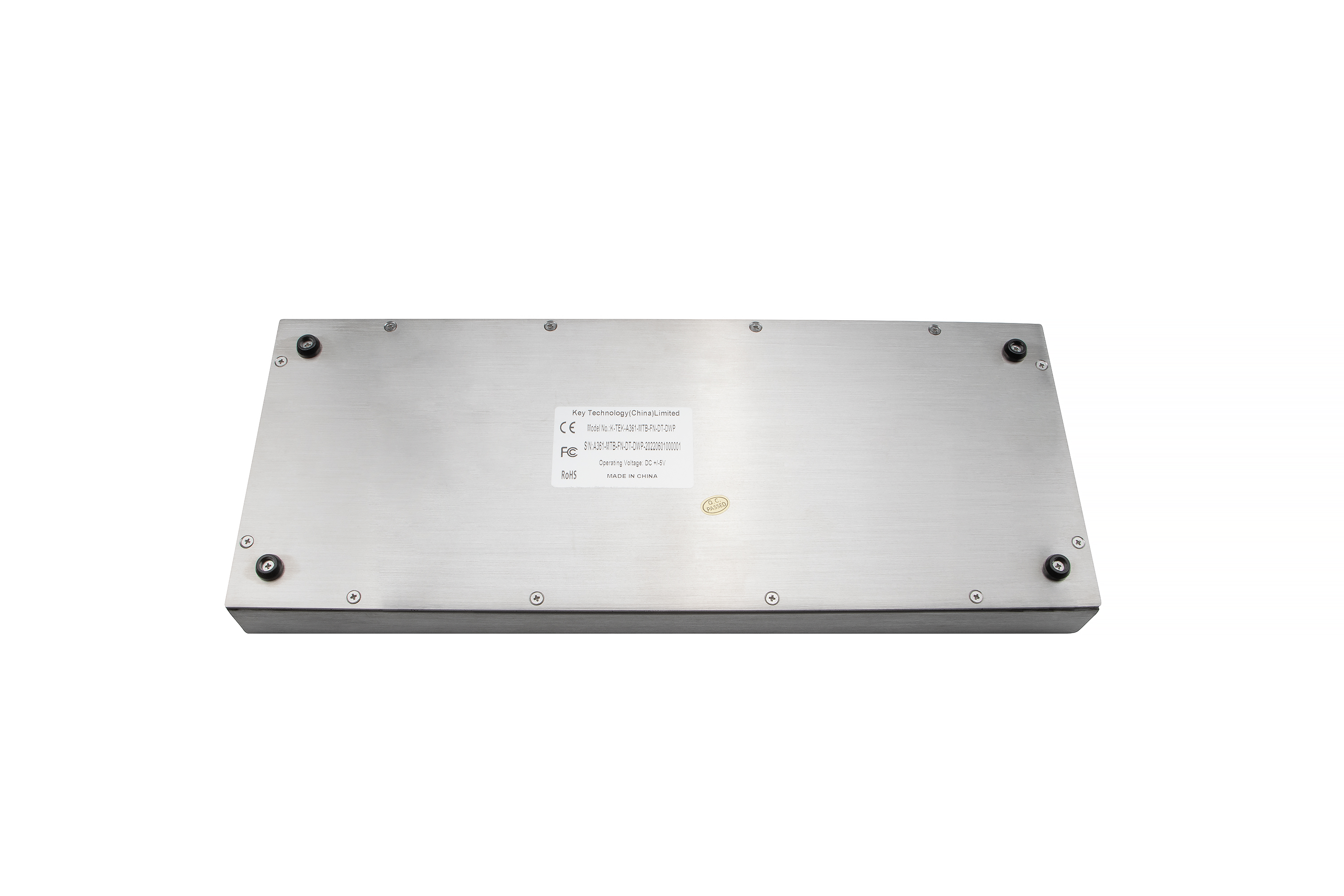

Back View
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
