IP65 Compact Industrial Touchpad Panel Mount Ultra Thin With Mouse Buttons Black

Product Categories
Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP65 Compact Industrial Touchpad Panel Mount Ultra Thin With Mouse Buttons Black

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-M73TP-IL

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Certifications : CE, FCC, RoHS

Panel mounting : Rear panel with mounting holes

Color : Black

Backlight : Optional

Interfaces : USB or PS/2

Application : Industrial, Military,Marine,etc

Protection Level : IP65

Material : Aluminum or Plastic

Name : Industrial touchpad

Contact Now



IP65 Compact Touchpad Panel Mount Ultra Thin With Mouse Buttons Black

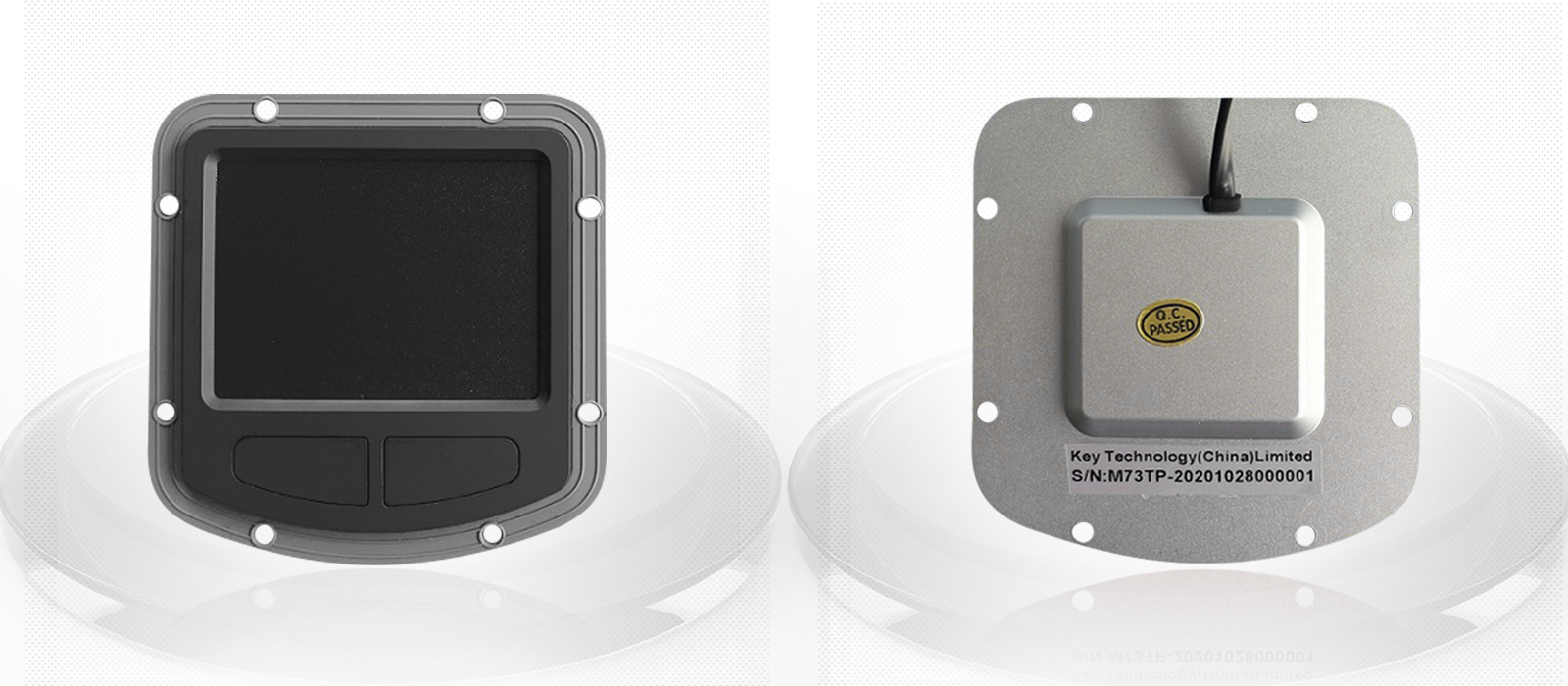

Description: IP65 static Sealed Industrial Touchpad with 2 mouse buttons under touchpad for left and right clicking with OMRON key switch technology with short stroke of 0.30±0.05mm, the electronics controller module shielded and protected with one ultra thin aluminum backplate, with mounting holes along with the rear ABS plastic plate for rear panel mounting, military level optional, wide temperature of -40℃ to +65℃ optional, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) optional.

Industrial Touchpad Dimension: 73.0 x 73.0 mm (front panel)


IP65 Compact Industrial Touchpad Panel Mount Ultra Thin With Mouse Buttons Black

TOUCHPAD TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Key 2 keys
Key top style Non-protuberant Keys
Key Travel 0.30±0.05mm
Touchpad thickness 1.3 mm PCB thickness inclusive of mylar layer
Key switch lifespan more than 5 Mio actuations
Touchpad lifespan 10 millions clicking
Back Cover Rear side integrated electronics protected by a ultra thin aluminum backplate
Actuation Force 1.2N±0.2N
Mounting Solution Rear panel mounted
Dimension

Touchpad: 61.0mm x 45.0mm;

Front Mounting Panel: 73.0 x 73.0 mm

Rear Mounting Panel: 87.0mm x 90.0mm
Interface PS2, USB are available
Electrical Power supply DC +5V±5%
Protection level IP65 static (front panel)
EMC Standard EN 55032:2015 EN 55035:2017
Power consuming ≤1.00W(dynamic)
≤0.2W(static)
Contact Material Omron key switch
Environmental Operating temperature -20ºC~+ 65º C
Storage temperature -30ºC~+ 76ºC
Operating RH 30～90%
Atmospheric pressure 60～106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified.
MTBF >20000h
MTTR < 30min
TOUCHPAD OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
Application Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas, portable rugged laptop, ground vehicle etc.
