waterproof metal keypad with rugged ATM kiosk numeric keypad

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

waterproof metal keypad with rugged ATM kiosk numeric keypad

Brand Name : IKB-MKB

Model Number : K-TEK-B139KP-AC(20)

Certification : CE,FCC,ROHS,IP65,IP68,ESD

Place of Origin : China

MOQ : + 1 pc

Payment Terms : T/T, Western Union, paypal

Supply Ability : 3000pcs/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box,several boxes to one carton

Material : Metal Stainless steel

Colour : Brushed stainless steel

Key Travel : 0.45 mm short stroke

Interface : Dot matrix

Key Number : 20 keys

Dimension : 139.0mm x 98.0mm

Contact Now

waterproof metal keypad with rugged ATM kiosk numeric keypad



Main features:



1.Dot matric long stroke metal programmble keypad available

2.20 -Keys Vandal proof IP65 dynamic Stainless Steel matrix keypad

3.USB or PS/2 interface with electronic controller included

4.Industrial metal dome PCB with gold-on-gold key switch technology

5.Any customized layout and keycode welcomed without any additional charge

6. top stainless steel plate with welded studs for top panel mounted.





Applications:



This inudstrial function keypad is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.


Specifications:



ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC

Storage temperature

-30oC to +70oC

Operating RH

30-90%

Atmospheric pressure

60-106Kpa



RELIABILITY

Certification

RoHS Compliant, CE and FCC,IP65,ESD.

Protection Level

IP65(front panel)

Vandal resistant

IK10

Key Lifespan

>5 million actuations

MTBF

>50000H

MTTR

<30min

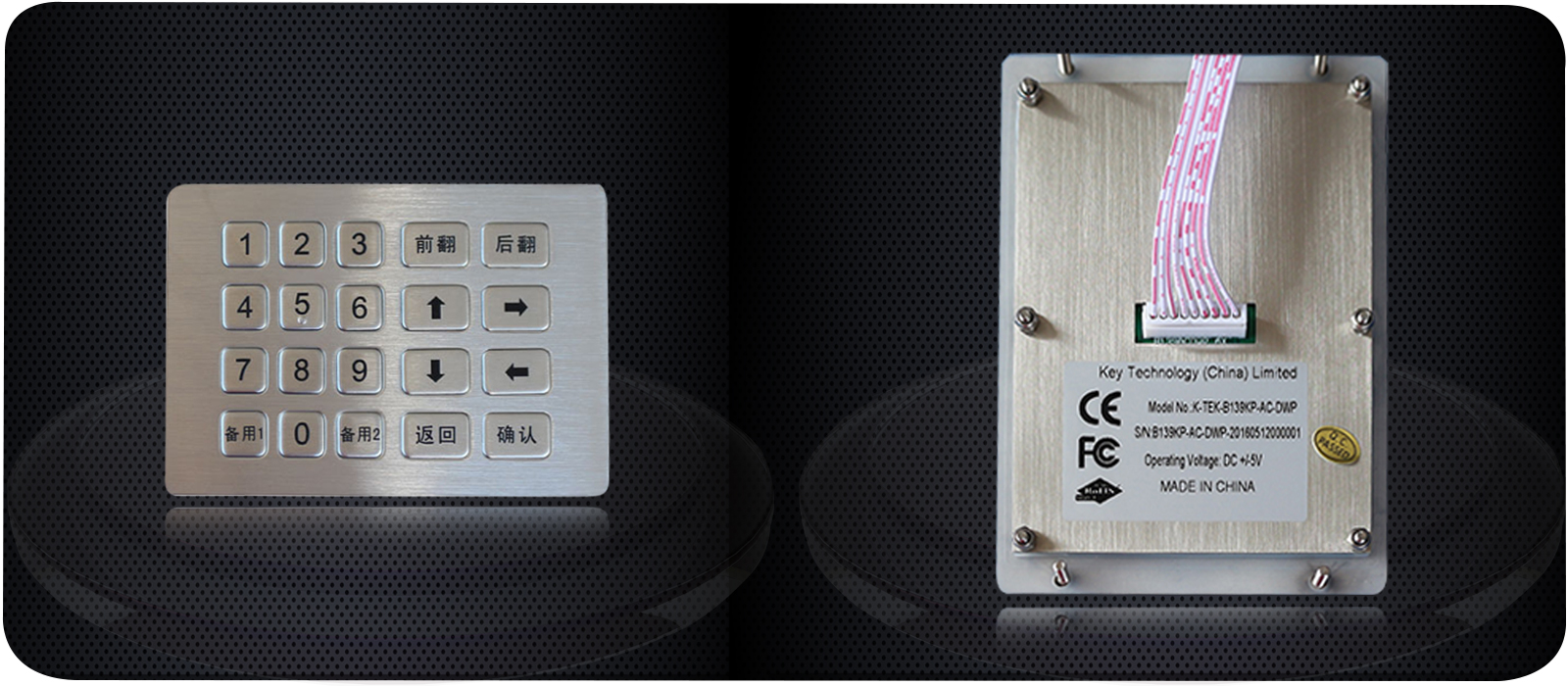

Actual Photos:







Mechnical Drawing:
